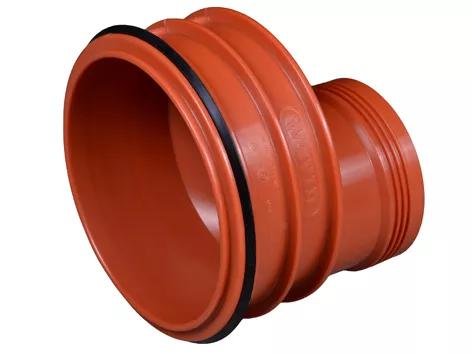

Opti-Rib PP Reducer OR 200x110 exc
Product Identifiers
Catalog Code+1525120
EAN Number5708525370817
VVS nr.195267195
DB nr.5921293
SAP number3043128
Commercial
| Label | Value |
|---|---|
| VVS nr. | 195267195 |
| DB nr. | 5921293 |
| Label | Value |
|---|---|
| ETIM Classification | EC003024 |
| Material connection 1 | Polypropylene (PP) |
| Material quality connection 1 | PP-C |
| Surface protection connection 1 | Untreated |
| Surface treatment connection 1 | Untreated |
| Material connection 2 | Polypropylene (PP) |
| Material quality connection 2 | PP-C |
| Surface protection connection 2 | Untreated |
| Surface treatment connection 2 | Untreated |
| Shape | Straight |
| Model | 1-part |
| Bend angle | 0° |
| Bend radius | 0mm |
| Reducing | Yes |
| Eccentric | Yes |
| System-specific | Yes |
| Nominal diameter connection 1 | DN 200 |
| Outer pipe diameter connection 1 | 200mm |
| Wall thickness, connection 1 | 0mm |
| Connection 1 | Spigot / tube end |
| Nominal diameter connection 2 | DN 100 |
| Outer pipe diameter connection 2 | 110mm |
| Wall thickness, connection 2 | 0mm |
| Connection 2 | Slide sleeve |
| Main colour fitting | Orange |
| With buffer stud | Yes |
| Zeta value | 0.0000 |
| High tensile strength | No |
| Length | 181mm |
| Length of connection 1 | 75mm |
| Working length connection 1 | 0mm |
| Length of connection 2 | 181mm |
| Working length connection 2 | 0mm |
| Wrench width | 0mm |
| Wrench width union nut | 0mm |
| Medium temperature (continuous) | 1 - 75 |
| Max. operating pressure at 20 °C | 0bar |
| Max. operating pressure at max. medium temperature | 0.5bar |
| With thermal insulation | No |
| Ring stiffness class | SN8 |
| Standard Dimension Ratio (SDR) | 0.0000 |
| With sealing rings/gaskets | No |
| Capped | No |
| With drain valve | No |
| FM quality mark | No |
| DIN-CERTCO certificate | No |
| VdS quality mark | No |
| KIWA certified | No |
